AeonLabs has now available a solution for monitoring concrete hardening and maturing at the construction site using a small portable IoT sensor device able to connect to any logistics or system for real-time data collection and assessment of the quality of concrete during hardening.

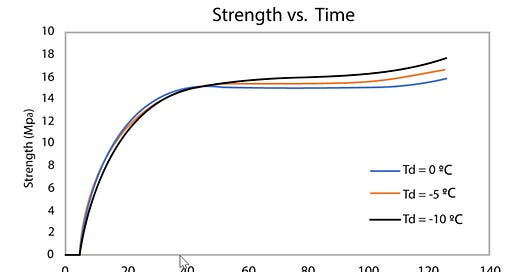

With this IoT device is possible to automate and monitor concrete cast remotely. Assess the concrete hardening state in a graphical manner as follows:

This IoT sensor device is able to connect directly to a smartphone or tablet, alternatively, it can connect to an existing network already available at the construction site.

Specifications of the IoT sensor device for concrete monitoring

- Hardware: Arduino (or compatible device)

- Bluetooth BLE / WIFI / 4G GSM

- Power supply: standard 9V battery

- a calibrated thermocouple sensor type K

- dimensions: 80x40x35mm

hardware electronics for the BLE version

Installation procedure
the IoT sensor device can be placed on top of the fresh concrete surface and in as many places as needed/ required by the engineering staff.

It has a test probe with variable length (according to design specs), that needs to be inserted into the concrete for temperature measurements. No additional steps are required.

How much it cost

The total cost per unit starts at €40 and includes remote assistance on the installation and network setup to your enterprise's data monitoring system.
AeonLabs also has available a cloud-based monitoring system, pre-configured, which requires no additional setup, facilitating the task of deployment of this concrete maturity IoT sensor device, and at no additional cost. The only requirement is for your enterprise to allow data collected to be copied to AoenLabs cloud severs for scientific research purposes including the development of transfer learning technologies.

AoenLabs also available other IoT monitoring sensor devices to assists engineering staff at a construction site by making available a constant feed of live data from the site directly to the office.

Contact me on Twitter @AeonLabsS or by email at mtpsilva@gmail.com, for more information on how to improve productivity at your construction site with open source solutions and at the lowest price on the market.

to learn more about AeonLabs, visit here: http://www.aeonLabs.solutions
